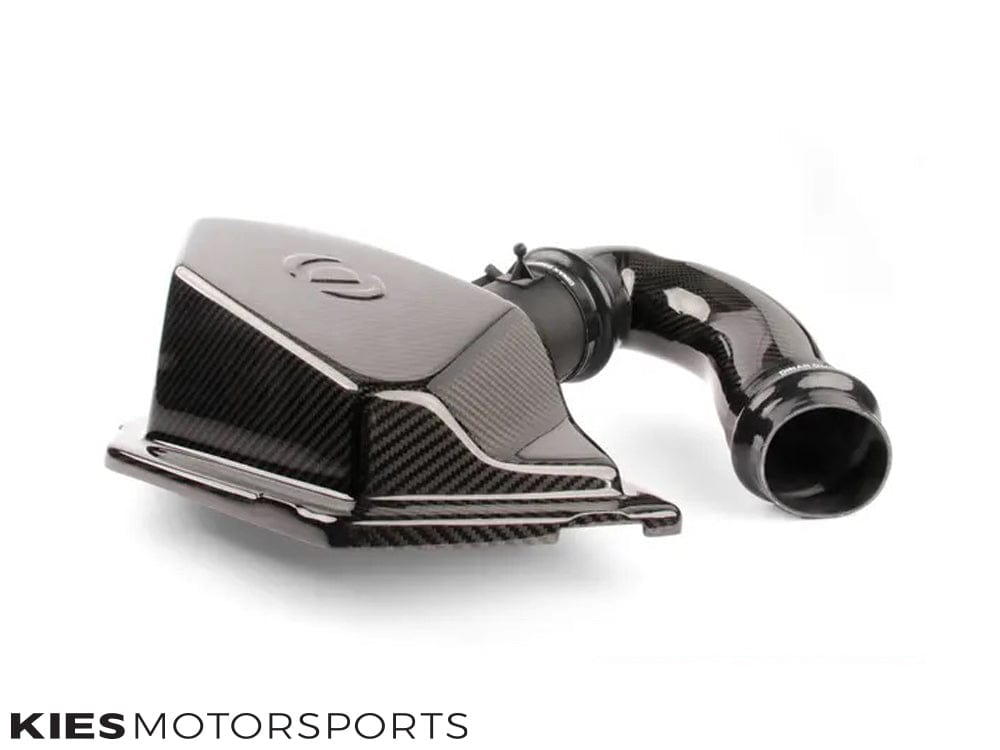

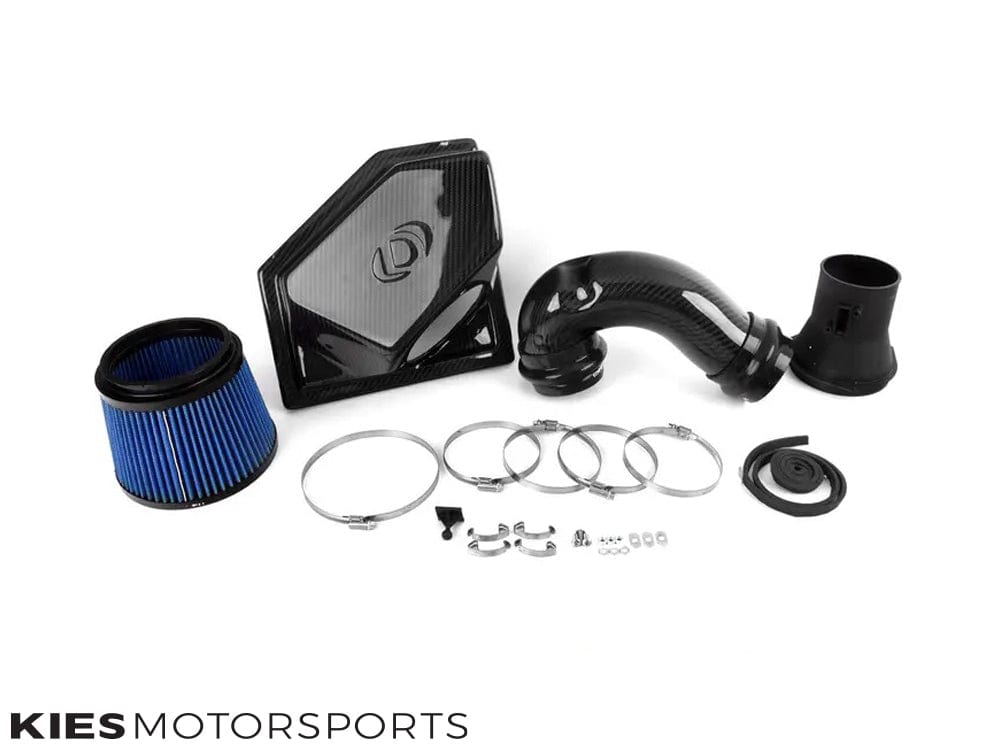

DINAN SEMI-OPEN INTAKE - 2016-2021 BMW 230I/330I/430I

Vendor: Dinan
SKU: D760-0048-A
Availability: Out Of Stock
Product Type: Air Intake
$479.95 USD
$471.95 USD
$479.95 USD
Hurry up! only -2 left
Subtotal: $479.95
Kies-Motorsports Dinan DINAN SEMI-OPEN INTAKE - 2016-2021 BMW 230I/330I/430I

DINAN SEMI-OPEN INTAKE - 2016-2021 BMW 230I/330I/430I

$471.95 $479.95

DINAN SEMI-OPEN INTAKE - 2016-2021 BMW 230I/330I/430I

$471.95 $479.95
Looking for more sound than what can be attained from the standard Dinan closed box intake for F2x/F3x B46/B48 powered vehicles and don't want to sacrifice all the performance gains or the beautifully crafted carbon fiber design in the process? This semi-open variant of the same intake meets those demands using a revised lid with an additional auditory port so those intoxicating turbo noises can be more easily heard. Beyond the additional sound opening the semi-open intake takes the same path to success as its closed box counterpart. Improve upon the factory design by increasing flow via a larger airbox and filter element thereby improving throttle response and lessening the strain on the turbocharger for maximum efficiency. While box and filter enlargement and redesign are a major factor in ultimately producing a more potent intake, they are not the only variables in creating a more efficient design either. The devil is in the details which is where Dinan thrives. Dinan engineers focused their attention on the intake pipe itself where numerous improvements could be made. In factory configuration, the intake tube comes complete with baffling and a small Helmholtz chamber to reduce unwanted sound. As a byproduct, these features also cause a more turbulent airflow path which robs the factory system of potential power. These two specific details are diametrically opposed to our intended market's desires, so the removal of these features was paramount. Through numerous iterations, a carbon fiber intake tube was developed that eliminated flow disruptions and allowed the natural sound of an unimpeded intake tract to sing. All told this thorough methodology of design allows the Dinan carbon fiber intake for the B46/B48 engine to elicit gains of 6 HP and 6 TRQ at 5000 RPM on a completely stock vehicle. Not to be outdone by the performance side of the equation, the B46/B48 intake also is completely made up of carbon fiber unlike 4-cylinder intakes of previous generations where a mix of materials were used. Not only is the intake completely carbon construction but the quality of the material has been improved as well. While looks are surely important, and this piece has that department covered in spades, the improved construction and coating also guarantees that the appearance of the engine bay with the Dinan intake will not be marred over time. Built to elicit a more pronounced sound, imbue the engine bay with some carbon class, perform, and last the duration-- the Dinan semi-open B46/B48 carbon fiber intake is a modification that is a must for any enthusiast that places sound atop their requirements list. paramount. Through numerous iterations, a carbon fiber intake tube was developed that eliminated flow disruptions and allowed the natural sound of an unimpeded intake tract to sing. All told this thorough methodology of design allows the Dinan carbon fiber cold air intake for the B46/B48 engine to elicit gains of 6 HP and 6 TRQ at 5000 RPM on a completely stock vehicle. An impressive feat on today's turbocharged engines. Not to be outdone by the performance side of the equation the B46/B48 intake also is completely made up of carbon fiber unlike 4 cylinder intakes of the past where a mix of materials was used. Not only is the intake completely carbon construction but the quality of the material has been improved over previous generations as well. While looks are surely important, and this piece has that department covered in spades, the improved construction and coating also guarantees that the appearance of the engine bay with the Dinan intake will not be marred over time. Built to present well, perform well, and last the duration, the Dinan B46/B48 carbon fiber cold air intake is a modification that is a must for any high-performance build.

Features:

  • More Power: + 6 HP @ 5000 RPM & + 6 lb-ft @ 5000 RPM (+ 5 WHP & + 5 WTQ) without additional modifications
  • Sportier Sound
  • Improved throttle response
  • Larger volume air box (30% larger than stock) that completely seals for maximum insulation from power robbing heat
  • 34% increase in filter area (stock: 76.3in², Dinan: 102.1in²) for optimum flow
  • Optimized carbon fiber intake tube
  • Free flowing injection molded Air Mass Meter housing (ove 20% larger then stock)
  • Quick and easy installation
  • 50 State Emissions Legal (partial application list): CARB EO D-176-56 (2019-21 F2x/F3x 230i/330i/430i Only)



SPECS

Brand Dinan
Dinan Point Value 3
Emission Code 7
Labor Time (Hours) 1
Product Type Cold Air Intake
Sale Category Cold Air Intakes
Warranty Dinan Factory Matching (4yr/50k) Warranty
UPC 810009938651
Part Number D760-0059



EMISSIONS
7

This part is legal under the provisions of EPA’s Tampering Policy dated November 23rd, 2020. The company has reasonable basis (test results) to verify that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and the EPA Tampering Policy. This product is NOT LEGAL FOR SALE OR USE IN THE STATE OF CALIFORNIA. Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending with CARB. Once testing is complete with California, and an E.O. number is issued, this product will be updated to 50-state legal status.

TECH RESOURCES
For those who already own a non-brace compatible Dinan intake (D760-0055) but now want to run braces without purchasing a completely new intake kit you can order the retrofit kit (lid and hardware) seperately for $84.95. To do so contact the tech sales department at 1-800-341-5480 and request part number D763-0185.
