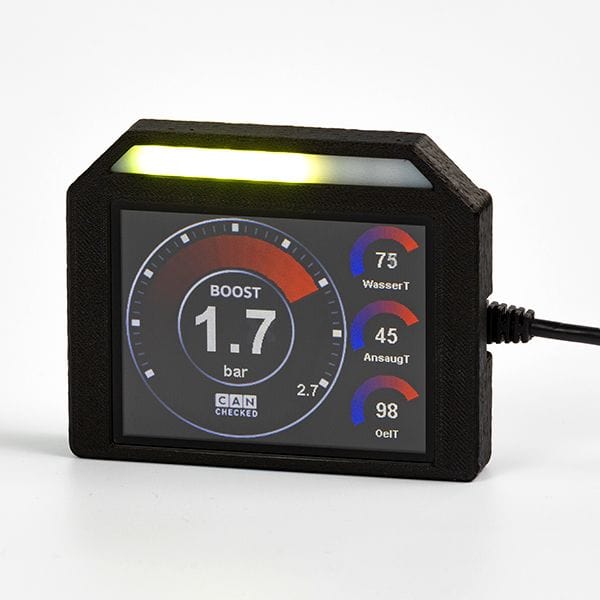

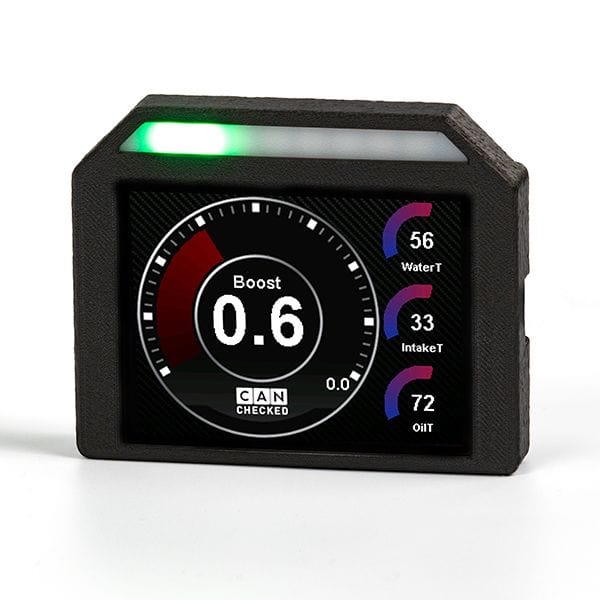

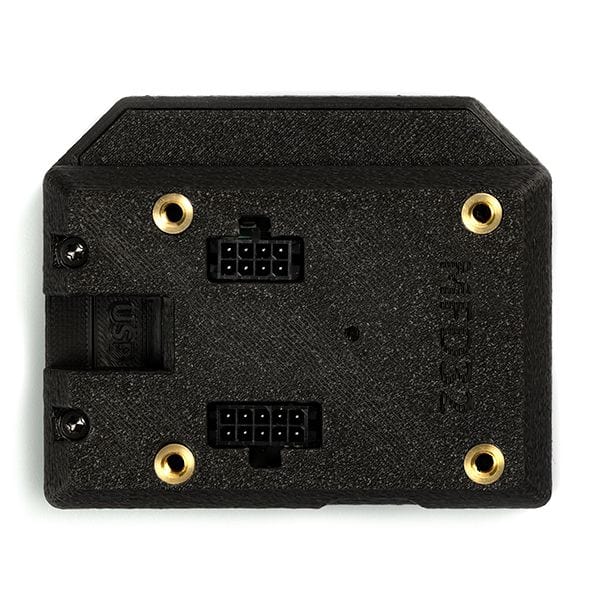

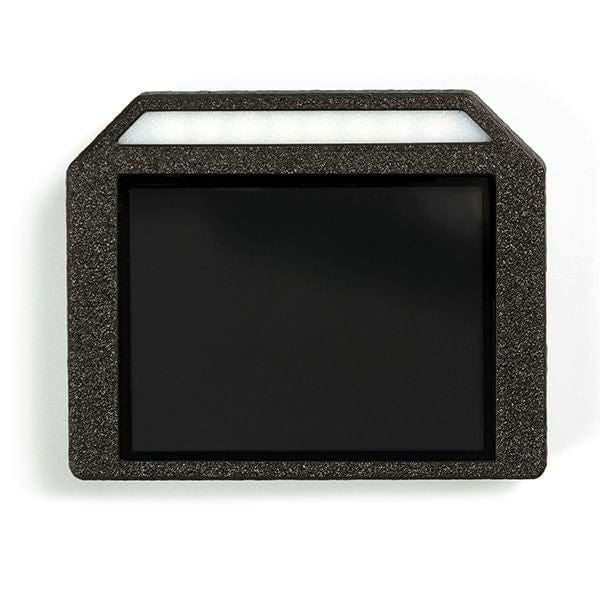

CAN CHECKED MFD32S Gen2 Display Universal

The CANchecked Display MFD32S for universal Usage - perfectly integrated and all data always in view

The MFD32S transforms your interior into a race car with features you won't want to miss. Our displays are designed so that they can be installed by anyone. For most displays there are illustrated installation instructions so you can install your display yourself.

Key Features

• Perfect integration: The Universal housing fits at every place in the interior
• Internal Shiftlight: 8 programable shiftliht RGB Led´s
• Can Bus: Readout of in-depth vehicle data such as manufacturer diagnostic tools
• Gear display: Directly via Can Bus or calculated from speed and rpm
• Touchscreen: Navigate through pages using intuitive swipe gestures
• Customization: Design your own pages, add your own pictures or start animation
• Additional inputs: Connect up to 4 analog inputs and an ethanol sensor directly to the display
• Can Switching: Use your display as a keypad and send your own can messages to the bus
• Customizable Alarms: Customizable alarms can be easily configured and activated. For example, get a big warning message when the exhaust gas temperature is above 900 degrees
• Logging: Log and save your data to the internal SD card for later analysis.
• Performance Meter: Measure your 0-100, 100-200 and 0-200 times with the integrated performance meter without any additional hardware.
• DTC: Read and clear the errors of engine control unit, transmission, ABS and all-wheel drive
• Dimming: Your display automatically dims along with the instrument panel

Different views

Configure your own page or choose from several predefined views:

• 10 freely configurable pages
  20 different widget types (e.g. sensor value, analog pointer, YT chart, RPM bar, circular display, vertical/horizontal bar)
  up to 64 widgets per page
  Widgets scalable in size and positionable via drag and drop
  colors of widgets fully adjustable

DSS – Display Setup Software

With CANchecked Dsiplay DSS (CANchecked Dsiplay.com/dss) you can fully customize your display. With the integrated log viewer you can download and view log files. Furthermore a Can-Logger is integrated. The heart is the integrated "TRI Editor" with which you can adjust the sensors (no matter if Can Bus or internal): Assign min-/max-values for warnings and change the names of your sensors.

Supported values

Many customers always ask: "Which values can I get from my ECU". The answer: "ALL".

We have reverse-engineered the data to most engines here and can offer in-depth data. Our display supports Can Bus data query (UDS, TP2, manufacturer specific protocols) as well as data query via K-Line (ISO 9141).

By default your display is delivered with predefined TRI/TRX files. In the files all sensors are defined, which are queried. These are different from engine to engine. Here is an extract of what is possible:

Temperatures:

• Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG temperature.

Pressures:

• Boost pressure, ambient pressure, fuel pressure pre-feed pump, rail pressure actual/target.

Lambda/mixture

• Lambda value, injection time, short term lambda adjustment, long term lambda adjustment

Other

• RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing in %, terminal 30 voltage, torque, gear, diesel specific values

If values are missing, they can be added later.

Scope of delivery

Included with every delivery

• MFD32S Gen2 data display
• Cable with pigtail and Connectors
• Quickstart Guide
• USB data cable
• SD card (pre-installed in the display)
• SD card adapter
• Display foil (to prevent reflections)
• two 1K resistors (to connect NTC sensors)

Connection and extension

Any sensors can be connected via the four analog inputs - we support linear 0-5V as well as NTC sensors.
Our in-house CANchecked Dsiplay sensors are stored in the TRI/TRX files by default and only need to be connected:

• AIN1: Temperature sensor
• AIN2: Transducer for exhaust gas temperature sensor type K
• AIN3: Pressure sensor 0-10 Bar
• AIN4: boost pressure sensor 0-5,5 Bar absolute

For the connection you can use our pre-assembled AIN wiring harness.

Beside the analog sensors you can also connect our external shift light with 8 LEDs. This can flash in different colors and the speed limits and colors can be configured directly on the display.

You connect the ethanol sensor directly to the display. You need a pullup resistor (10K) between 5V and signal. Then you can view and log the ethanol content and temperature directly on the display.

Advanced functions

With the Math-Channels you can calculate sensors with each other. The User-Table gives you the possibility to generate further sensors with 2D or 3D maps.

Optional accessories

• CC22100 CBD08 - eightfold Can Distribution Hub
• CC22902 NTC01 - temperature sensor for liquids 1/8" NPT
• CC22903 TCC01 - type K converter 0-1250°C
• CC22901 FLP01 - Pressure sensor 0-10 Bar (145psi) M10x1
• CC22900 BST01 - Pressure sensor 0-5,5 Bar absolute (80psi)

Vehicle-specific connection and installation instructions

https://www.canchecked.de/downloads/einbauanleitungen/
